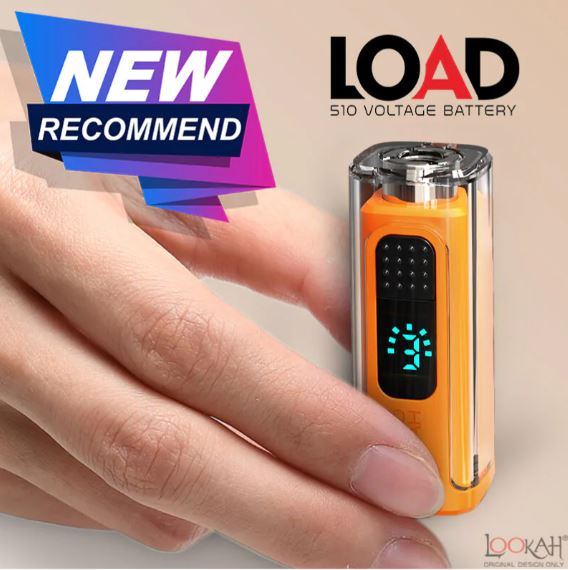

About the Lookah LOAD 510 Vape Pen Battery

Lookah Load vape pen battery for 510 threaded carts is one of the smallest vape pen batteries on the market.

At just 57mm long and 22mm wide, this elegant mini vape pen is smaller than a lipstick tube.
Despite its small size, it has a 500mAh battery capacity, so this mini vape pen is perfect for a day out.
It can also be charged from a power bank so it could accompany you on longer trips such as camping, tracking, and any other vacations with excellent battery life.

It is designed to be used with most 510 threaded cartridges and works with the Lookah 510 thread wax cartridges. Its small size makes this pen-style battery discreet, and it sits comfortably in the palm of your hand. Choose from one of the vibrant colors like red, orange, or blue, or perhaps a more subtle black or grey that will go with anything.

How to Use the Lookah Load

The Lookah Load has a digital display and a single button function making it easy to use.
A standard five rapid power button clicks will turn the Load on.
The display screen will blink three times with the seven power bar indicators in a horseshoe shape, acknowledging it's now active.
If a 510 cartridge is connected, the device will enter a 10-second preheat mode where the screen flashes and displays a countdown from 9 to 0.

Changing the variable voltage.

Double-tap the power button to switch between the three voltage settings; each voltage is indicated by a number that will show on the display screen. Mode 1, 3.2V, Mode 2, 3.6V and Mode 3, 4.0V.

Vaping with the Load

You need to press and hold the power button while vaping.
When the desired temperature is set, press and hold the power button for up to 10 seconds to vape. After 10S, the screen will flash five times, and the device will switch back to standby.
The seven lights around the edge of the display indicate the remaining charge left in the Load vape pen.
The device can be turned off after use by pressing the power button five times. It will also turn itself off after 60 minutes without being used.

Charging the Lookah Load

On the base of this 510 cartridge vape pen is a USB Type-C charging port. Connect any type C USB charger cable to this and attach the other end of the cable to a USB charging port. When charging, the battery indicator lights around the display will flash and light up counterclockwise as the device charges.

If the display shows "L" when you turn it on then this indicates the battery needs charging. If the display shows a "0" or "9" then this indicates a short circuit or open circuit.
Please check the thread on the device and the cartridge are clean and making a good connection.
